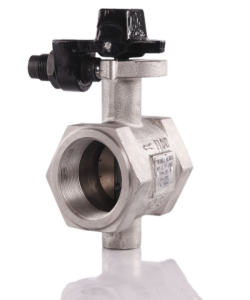

Type: H2200-SE
Size: 2"-6"
1. Body
The HBV801 has a durable cast iron body, with nickel plating for corrosion prevention.
2. Locking handle
The HBV801 is designed to accept a padlock for increased safety and security on the job site.
3. Disc
A Polished aluminum-bronze disc with a replacement O-ring seat is standard. BUNA-N is used as a standard soft goods material,
however, Viton soft goods are available on request.
Features:
1. The HBV801 is the most cost-effective flow control valve for threaded applications.
2. The simple design allows for smooth operation and long valve life, with minimal maintenance.
3. The HBV801 features a durable one-piece cast iron body, which is nickel plated for corrosion resistance, and a solid 410 stainless steel stem for superior strength.
4. The HBV 801's simplistic design allows for easy field repair without special tools or equipment.
5. The HBV801 pressure rated to 200 PSI and available in sizes 2"-6" NPT.
